N 1.5 Clamp
Nail strip profiles just got a whole lot simpler! The S-5-N 1.5 clamp boasts an angular throat that accommodates most nail strip profiles, minimizing the need to field crimp. An angled wall with a nose permits the S-5-N 1.5 to engage the triangle type profiles during the installation process—there is no longer a need to hold the clamp in place while setscrews are tensioned.

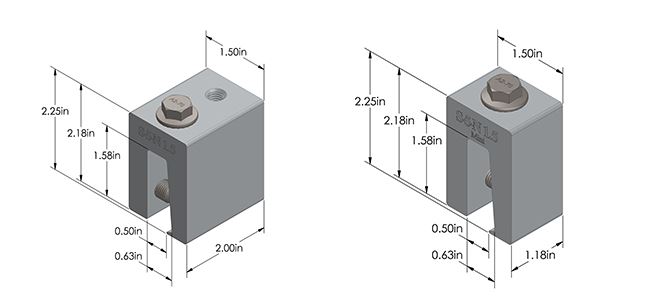

The combination of these two features allows the clamp to sit straighter on the seam. The S-5-N 1.5 Mini clamp is a bit shorter than the S-5-N 1.5 and has one setscrew rather than two. The Mini is the choice for attaching all kinds of rooftop accessories.
The S-5-N 1.5 and S-5-N 1.5 Mini clamps are each furnished with the hardware shown below. Each box also includes a bit tip for tightening setscrews using an electric screwgun. A structural aluminum attachment clamp, the S-5-N 1.5 is compatible with most common metal roofing materials excluding copper. All included hardware is 300 series stainless steel.
