Product Information

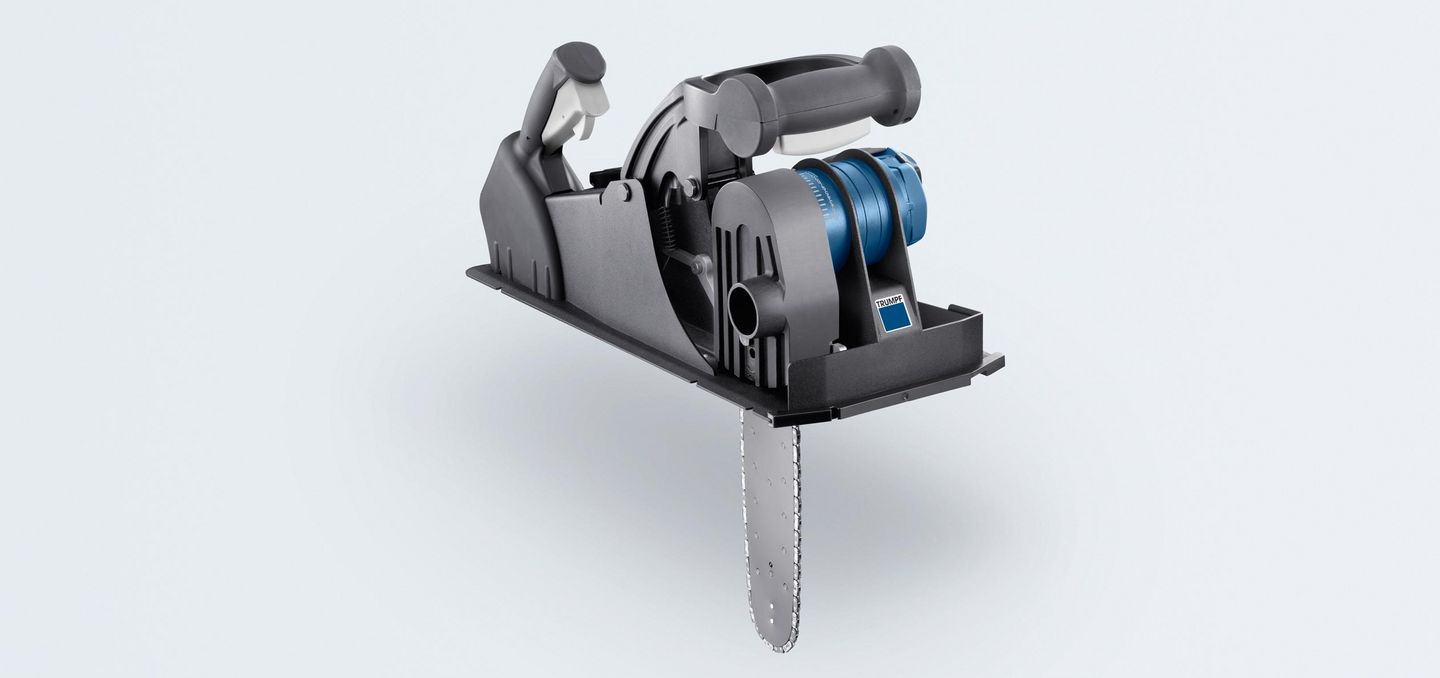

TruTool TPC Panel Cutter



Perfect cuts straight away

The new Panel Cutter TruTool 165 cuts polyurethane, polyisocyanurate and now mineral cool core insulated metal panels regardless of whether the panel surface is flat, high rib or corrugated. The machine can handle diverse applications, ranging from crosscuts and right-angle cuts to interior cutouts and notches. Even cutouts on pre-mounted panels are easy work for the new panel cutter..

With a 90 degree adjustable blade, you can easily and quickly produce right-angled cutouts. Another plus: as a result of its immersion mechanism, it's possible to start at any location on the panel without a starting drill hole.

  • Max Panel thickness: 6 1/2” with high rib or 8" if both panel surfaces are flat
  • Max individual material thickness: 20 gauge
  • Working Speed: 13.1’ per minute
  • Weight without cable: 21.16 LBS.

TRUMPF
