Product Information

Q Clamp


The S-5-Q clamp’s two-piece design allows it to be easily installed anywhere along the length of the rib, making installation a snap! Just place the clamp on the seam, position the insert piece and tighten the setscrews.

The S-5-Q is perfect for use with S-5!® ColorGard® snow retention system and other heavy-duty applications. The S-5-Q Mini clamp is a bit shorter than the S-5-Q and has one setscrew rather than two. The mini is the choice for attaching all kinds of rooftop accessories.

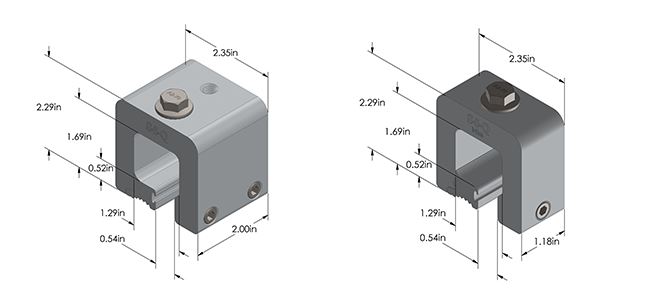

The S-5-Q and S-5-Q Mini clamps are each furnished with the hardware shown below. Each box also includes a bit tip for tightening setscrews using an electric screwgun. The structural 6000 series aluminum attachment clamp is compatible with most common metal roofing materials excluding copper. All included hardware 3000 series is stainless steel.
